Scale remover in Cooling tower
- The Optimal Solution for
Circulating Water System Maintenance -
Electro Life
Electro Life EL-10A-1
Electro Life EL-10A-1
Scale remover in Cooling tower - Electro Life -
The Electro Life EL-10A-1 is our self-developed product that utilizes electrolysis technology to powerfully eliminate scale (Scale remover) build-up in cooling towers and circulating water systems (chiller, etc.). (Patents 4214139 and 4644677)
In Thailand, the primary method of scale removal has been chemical treatments. However, due to its limited efficacy, the scales must be physically removed after a certain period. Additionally, given Thailand’s water quality, magnetic and mild electrolysis techniques fail to keep pace with the scale accumulation rate, leading to significant concerns.
The Electro Life EL-10A-1 is designed to maintain the efficiency of heat exchangers, greatly contributing to energy conservation and CO2 emission reduction.
Furthermore, the device is safe to use as it does not cause corrosion or damage to pipes.
Removing scales with zero reliance on scale removers
Drawbacks of using for chemical treatments (such as scale removers)
- Scale removers can’t assure the complete removal of scales and rusts.
- Scales can build up again over time, so scale removers need to be added periodically. This leads to additional costs to be paid, (including those for additional scale removers and works involved).
- The wastewater treatment facility is required to ensure proper treatment of scale removers.
- Extra expense on the water bill is incurred since scale removers need to be diluted.
With Electro Life, you can enjoy a maintenance-free solution that can also save up to 20-40% on your electric bill!
- As our product utilizes the electrolysis method, scale removers are no longer needed.
- Once the device is installed, no further maintenance is required. No need to add scale removers from time to time.
- As it becomes more difficult for scales to get attached to pipes, you can see a significant improvement in heat exchange efficiency and cooling ability.
- For water softeners：Resin can remove calcium elements, but silica remains. This silica can turn into glass fibers that attach to the pipes. At this point, the use of scale remover is rendered impossible. On the other hand, Electro Life needs not to rely on either water softeners or scale removers.
What is Electro Life？
Electro Life is an innovation that utilizes unique electrolysis technology to powerfully eliminate scales attached to the recirculating cooling water system such as cooling towers and chillers. It is also capable of preventing scales from building up again.
Thanks to scale removal by Electro Life, cooling towers and chillers can enjoy significantly enhanced heat transfer efficiency. As a result of this, costs of electricity and water bills can be greatly reduced.
Furthermore, Electro Life doesn’t need water treatment chemicals. For this reason, many other costs such as those for chemical feeding and water softeners can be saved. There’s no need for water treatment as well.
When the recirculating cooling water system becomes maintenance-free, cleaning costs will be reduced significantly, and there’s no need to suspend the equipment’s operation.
Reduced heat transfer efficiency due to scale build-ups
- Energy Loss → Increased electricity consumption（More CO2）.
- Unstable operation of the equipment → Increased defective products、suspended operation, reduced production efficiency due to maintenance.
- Suspension of the equipment’s operation due to pipe cleaning → Acid wash method can be detrimental to the equipment.
Scale Removal Case Example
Improvement in the Passage Section of an Oil Cooler
After Electro Life was installed for two weeks, almost normal water flow within capillary pipes was secured. No more scale build-up after two months.
Before installation
After 2 weeks
After 2 months
Improvement in Coolant Piping (Non-Destructive X-ray Evaluation)
Scale build-up within pipes:
We used a special non-destructive X-ray detection device to measure blockage within a 50A pipe. The result indicated a significant improvement in pipe blockage after around 3 months.
Before installation
After 3 months
Water Passage Inlet for Cooling Die Cast Molds
Before treatment
After treatment
Changes of conditions within a pipe before and after the installation of Electro Life:
Scale build-ups become more severe from evaporation caused by rising temperatures within a pipe.
After approximately 1 month, Electro Life’s scale removal resulted in changes as shown in the images above.
Closed Circuit Cooling Tower
Before treatment
After treatment
Removal of scales within a closed-circuit cooling tower:
Removal of scale build-ups within a closed-circuit cooling tower in the automotive manufacturing factory.
Most scales were removed after two months. In this case study, the cost could be maintained at 1/10 of that before the use of Electro Life.
Change in Water Quality Before and After Use
Before
After
How to Install Electro Life
It’s surprisingly easy to install the Electro Life device.
Weighing 40 kg, Electro Life is lightweight. It can be relocated without the use of cranes.
There’s no need for pipe cutting as well.

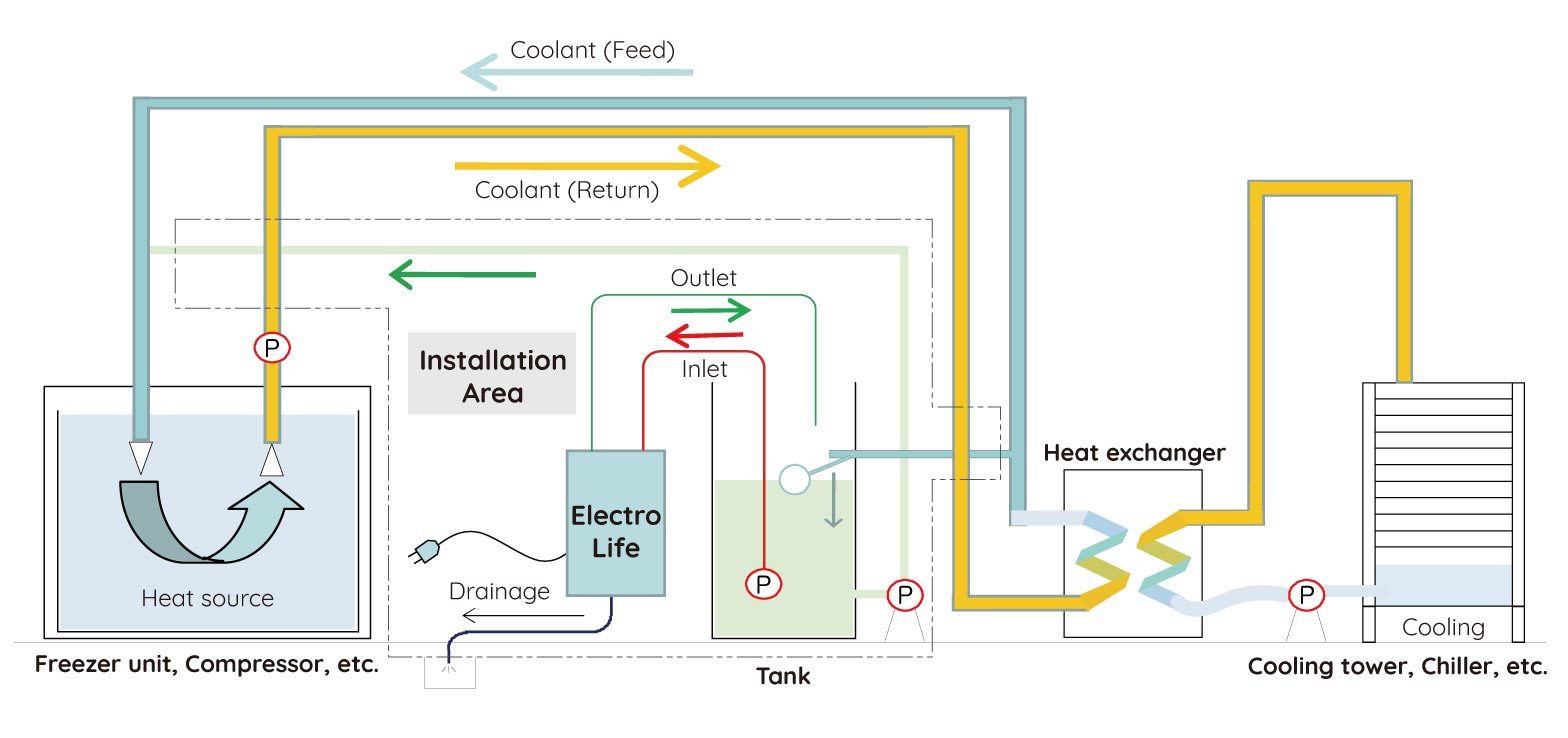

Some of the circulating water from the accumulated water at the base of the cooling tower or from a tank within the circulating system will be drawn into Electro Life via a hose.
On the other hand, water from Electro Life’s outlet will be fed back via hose to the water station. (This establishes a bypass for Electro Life and enables water circulation.)
※Because of this, even if Electro Life stopped functioning due to unforeseeable causes, the operation of the equipment won’t be suspended at all.

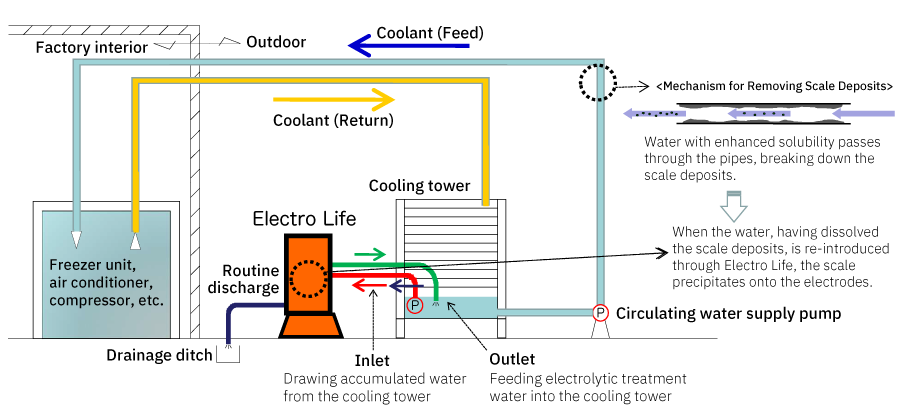

Example of installation (Primary side- Open)
A temporary suspension of Electro Life will not affect the production equipment.

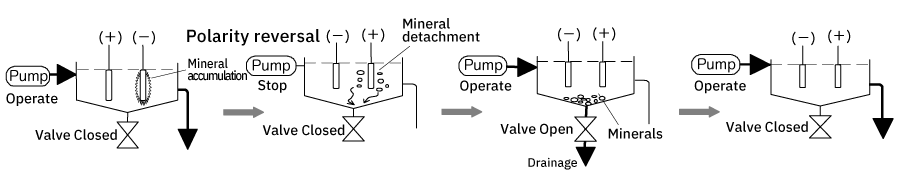

Operational Principle
Product Specifications
Installed product example
Measurements
| Dimensions | D 350mm / W 730mm / Ｈ 1200mm |
|---|---|
| Input power supply | Single-phase AC 100 - 240V, 50/60Hz |
| Treatment method | Electrolytic method (Maximum 10A, arbitrary current preset system) |
| Applicable cooling tower size | 150 – 300 RT (Depending on usage environment) |
Customer feedback
FTS Automotive (TH)
Mr.Tsukidate, Director
Our company has been taking measures by injecting chemicals.
When we received an offer from A-CAST to test the current water quality, and after checking, we found that the water quality was very poor. There were concerns that it might have an impact on the machinery and equipment, so we decided to rent equipment to test it.
Just two months after installation, the initial water quality quickly improved, and a lot of sludge-like sand-like material began to be collected in the strainer attached to the equipment.
In response to this situation, we switched from renting to purchasing.
Our engineers are checking the water quality, and it is stable.
I am happy to be able to use this equipment.
Thai Yamazaki CO., LTD
Mr. Sakurai
We were having touble with the condition of the coolant and were introduced to implement Electro life.
We decided to purchase an additional unit following the first one, because we saw a great improvement after 3 months of rental to compare the effect of the chemicals.
We are also very satisfied with the after-sales maintenance.
KITZ Bangplee Factory
Mr. Nakagome Manager
We had been using chemicals to improve water quality, but we began testing the use of “Electro Life”, which removes scale and rusts from pipes.
We have also started combining “Pureculaser”, developed by our group company and highly effective in eliminating organic matter, with “Electro Life,” which is powerful in removing inorganic matter. This combination enables the complete and automatic removal of all organic and inorganic scale and rust from piping.
As a result, there is no longer a need for chemical treatments or daily cleaning, significantly reducing maintenance costs and time.
For more details, see the article here: Case Study: Achieving Chemical-Free and Maintenance-Free Operation with the Combined Installation of Electro Life and Pureculaser – KITZ Bangplee Factory
FCC (THAILAND) CO., LTD.
Mr. Sakurai, Senior Manager
[Filler Condition: Before]
[Filler Condition: After
(3 Months Later)]
This is a case study from the 3rd month of a standalone verification trial of the chemical-free water treatment system “Electro Life” at the Thai factory of world-class clutch manufacturer F.C.C.
Previously, the factory faced a challenge with thick white scale accumulating inside the cooling tower. However, after installation, the power of electrolyzed water promoted the precipitation of calcium carbonate within the pathway. This not only prevented new scale adhesion but also softened and peeled off the existing stubborn scale, cleaning the filler to the point where the original surface was clearly visible.
This trial proved that the internal environment can be significantly improved through daily operation alone, without using chemicals. The client is now positively considering a transition to full-scale operation and formal purchase.
Read the detailed article here：[Case Study] Eliminating Scale Buildup in Cooling Towers! “Electro Life” Proves Effective in a 3-Month Trial at F.C.C. (THAILAND)
N&N FOODS CO., LTD.
Mr. Kurihara, Factory General Manager
Previously, we relied on chemical dosing for the maintenance of our Evaporative Condensers (Evap) and believed our measures were sufficient.
However, upon receiving a proposal for ‘Electro Life’ and reviewing our current situation, we realized that despite the high costs involved, water quality remained unstable. To compare its effectiveness against our existing chemical treatment, we decided to start with a rental trial of ‘Electro Life’ for verification.
After installation, not only did the water quality inspection figures improve rapidly, but we could also physically see the tangible effects.
Gaining the conviction that ‘such improvement is possible without chemicals’ and seeing that the water quality remained stable, we decided to officially implement the system.
Q&A About Electro Life
Q. What is the most used method for scale removal?
A. The most commonly used method for scale removal is chemical treatment.
However, the use of chemicals can raise environmental concerns, so this method can pose difficulties for factories that are in the process of obtaining ISO14000 certification.
Furthermore, chemicals with stronger scale removal effects can bring about undesirable results such as pipelines getting corroded. We can see that chemical treatment is not the perfect solution for scale removal.
Due to the issues mentioned above, more companies are considering non-chemical water treatment as their method of scale removal.
Q. Can Electro Life remove any kind of scales?
A. Various types of substances can form into scales. Prominent among them are Calcium Carbonate and Silica. By conducting an X-ray analysis on scale shreds discharged from Electro Life, we found the device is capable of removing silica, which is difficult to eliminate in general.
Q. What capacity of equipment can this device be used with？
A. 1 Electro Life device can have optimum performance when used with an open circuit cooling tower with a refrigerating capacity not exceeding 300 tons. （For closed-circuit cooling system, please consult us for further information.）
To be more specific, it’s been verified that when an Electro Life device was installed on equipment with a refrigeration capacity of 100 tons, the pipe’s blockage ratio was greatly reduced from 14% to approximately 2% after 2 months.
Electric Life’s effectiveness can become gradual when used with equipment with more capacity.
Q. How many companies have actually installed Electrolife? I’m concerned about whether it really works.
A. Dozens of companies and organizations in Thailand have already installed Electrolife. For real user experiences, please refer to the customer testimonials above. Many have reported positive effects, such as improved water quality.
Q. If I install Electrolife, will I still need chemicals or a water softener?
A. No, you won’t need them at all. Electrolife alone is sufficient.
